330
Interior Light

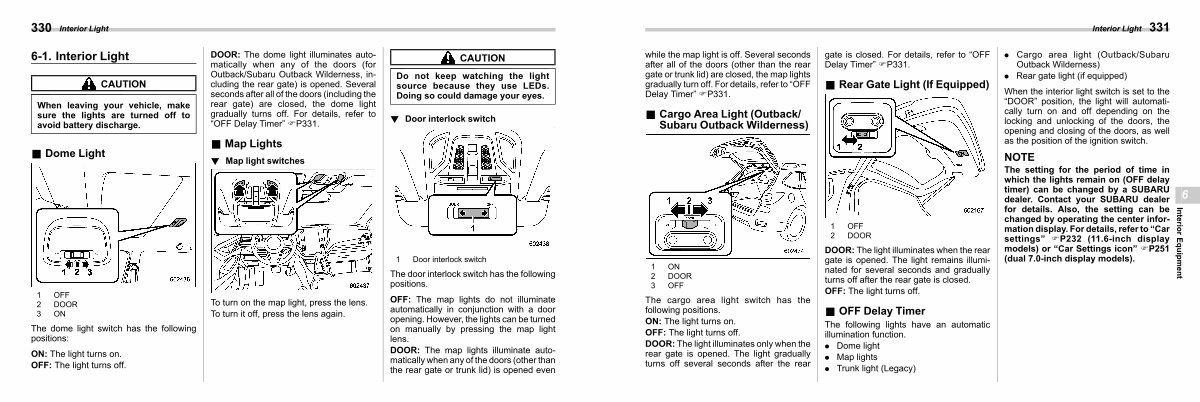

6-1. Interior Light
CAUTION s06aa
When leaving your vehicle, make sure the lights are turned off to avoid battery discharge.
& Dome Light s06aa01
DOOR: The dome light illuminates automatically when any of the doors( for Outback / Subaru Outback Wilderness, including the rear gate) is opened. Several seconds after all of the doors( including the rear gate) are closed, the dome light gradually turns off. For details, refer to“ OFF Delay Timer” FP331.
& Map Lights
! Map light switches s06aa06
s06aa0606
CAUTION
Do not keep watching the light source because they use LEDs. Doing so could damage your eyes.
! Door interlock switch s06aa0602
1 OFF 2 DOOR 3 ON
The dome light switch has the following positions:
ON: The light turns on. OFF: The light turns off.
To turn on the map light, press the lens. To turn it off, press the lens again.
1 Door interlock switch
The door interlock switch has the following positions.
OFF: The map lights do not illuminate automatically in conjunction with a door opening. However, the lights can be turned on manually by pressing the map light lens.
DOOR: The map lights illuminate automatically when any of the doors( other than the rear gate or trunk lid) is opened even
