4 |
||||||||

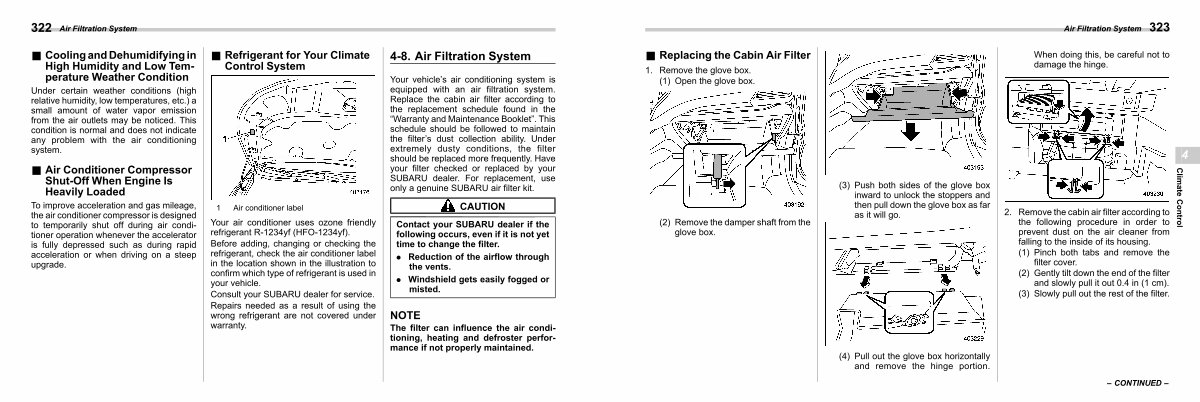

( 2) Remove the damper shaft from the glove box. |
( 3) Push both sides of the glove box inward to unlock the stoppers and then pull down the glove box as far as it will go. |
2. Remove the cabin air filter according to the following procedure in order to prevent dust on the air cleaner from falling to the inside of its housing.( 1) Pinch both tabs and remove the filter cover.( 2) Gently tilt down the end of the filter and slowly pull it out 0.4 in( 1 cm).( 3) Slowly pull out the rest of the filter. |
Climate Control |
|||||
( 4) Pull out the glove box horizontally and remove the hinge portion. |
||||||||
– CONTINUED – |
