288
Mirrors
. When using the display mode, parts of the vehicle interior may reflect light on the display. Adjust the angle of the Smart Rearview Mirror to avoid unwanted reflection.
Brightness adjustment Up / down adjustment

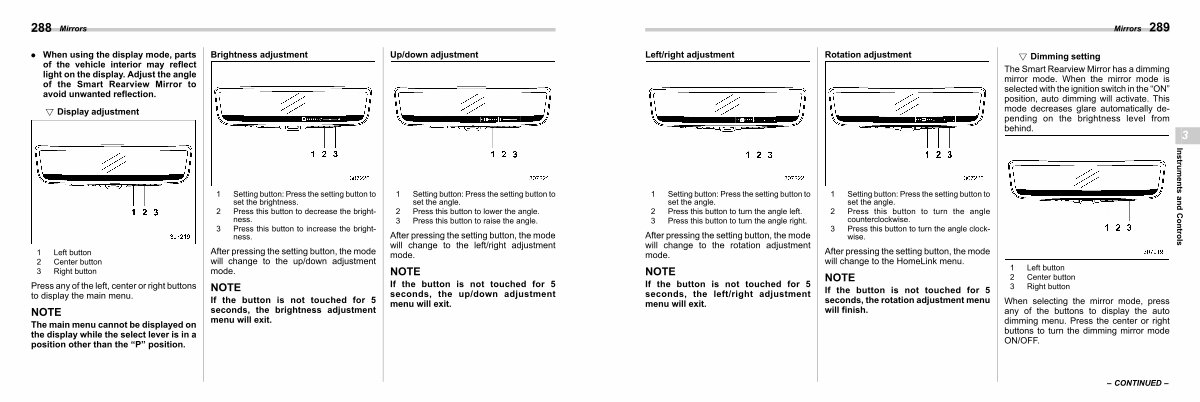

! Display adjustment s03ap110307
1 Left button 2 Center button 3 Right button
Press any of the left, center or right buttons to display the main menu.
NOTE
The main menu cannot be displayed on the display while the select lever is in a position other than the“ P” position.
1 Setting button: Press the setting button to set the brightness.
2 Press this button to decrease the brightness.
3 Press this button to increase the brightness.
After pressing the setting button, the mode will change to the up / down adjustment mode.
NOTE
If the button is not touched for 5 seconds, the brightness adjustment menu will exit.
1 Setting button: Press the setting button to set the angle.
2 Press this button to lower the angle. 3 Press this button to raise the angle.
After pressing the setting button, the mode will change to the left / right adjustment mode.
NOTE
If the button is not touched for 5 seconds, the up / down adjustment menu will exit.
