278
Mirrors
and outside mirror defogger system maintain continuous operation in this condition.
– If the vehicle battery voltage drops below the permissible level, continuous operation of the defogger system and deicer system is canceled and the system stops operating.
. The vehicle is equipped with a radio antenna on the upper part of the rear window. Therefore it is not possible to clear fog and frost on the upper part of the rear window.

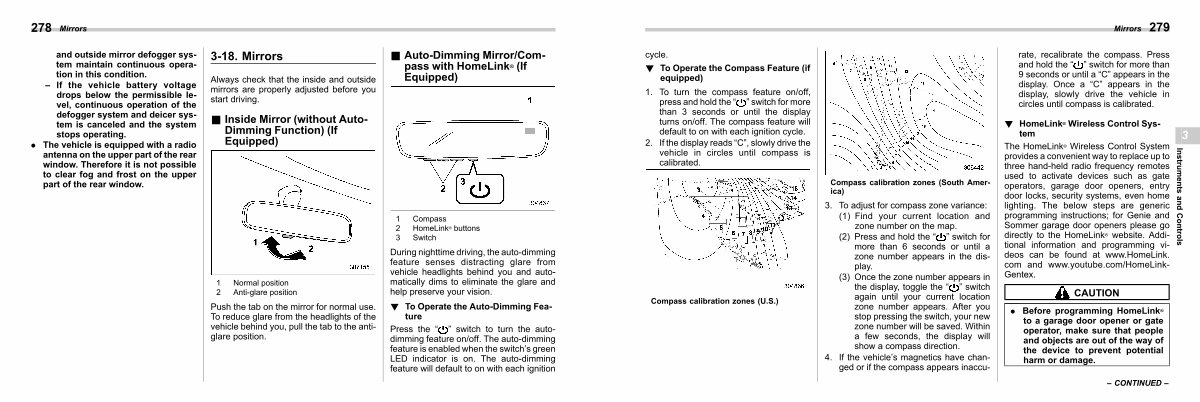

3-18. Mirrors s03ap
Always check that the inside and outside mirrors are properly adjusted before you start driving.
& Inside Mirror( without Auto- Dimming Function)( If Equipped) s03ap08
& Auto-Dimming Mirror / Compass with HomeLink ®( If Equipped) s03ap10
1 Normal position 2 Anti-glare position
Push the tab on the mirror for normal use. To reduce glare from the headlights of the vehicle behind you, pull the tab to the antiglare position.
1 Compass 2 HomeLink ® buttons 3 Switch
During nighttime driving, the auto-dimming feature senses distracting glare from vehicle headlights behind you and automatically dims to eliminate the glare and help preserve your vision.
! To Operate the Auto-Dimming Feature s03ap1001
Press the“” switch to turn the autodimming feature on / off. The auto-dimming feature is enabled when the switch’ s green LED indicator is on. The auto-dimming feature will default to on with each ignition
