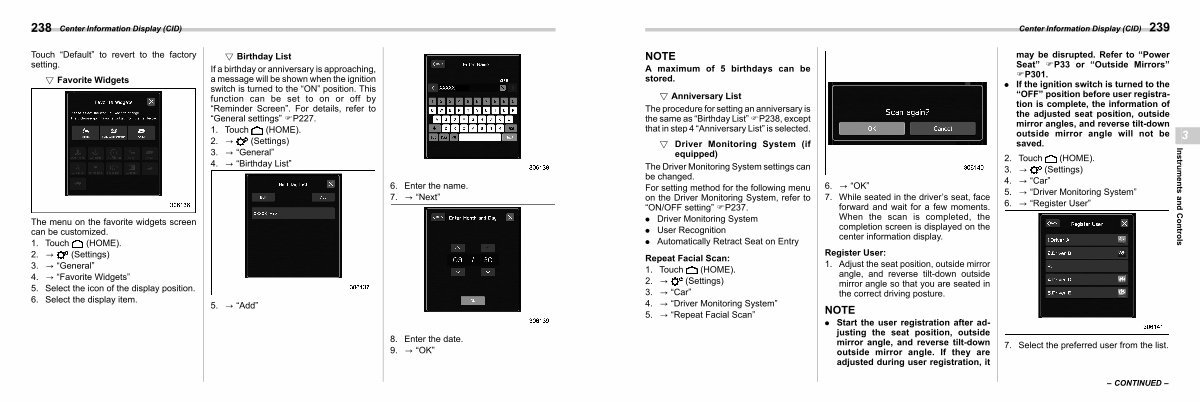

Center Information Display( CID) 239 |
||||||||||||
|
NOTE
A maximum of 5 birthdays can be stored.
! Anniversary List s03bs051104
The procedure for setting an anniversary is the same as“ Birthday List” FP238, except that in step 4“ Anniversary List” is selected.
|
! Driver Monitoring System( if equipped) s03bs051105
The Driver Monitoring System settings can be changed.
For setting method for the following menu on the Driver Monitoring System, refer to“ ON / OFF setting” FP237.
. Driver Monitoring System. User Recognition. Automatically Retract Seat on Entry
Repeat Facial Scan: 1. Touch( HOME). 2.?( Settings) 3.?“ Car” 4.?“ Driver Monitoring System” 5.?“ Repeat Facial Scan”
|
6.?“ OK”
7. While seated in the driver’ s seat, face forward and wait for a few moments. When the scan is completed, the completion screen is displayed on the center information display.
Register User:
1. Adjust the seat position, outside mirror angle, and reverse tilt-down outside mirror angle so that you are seated in the correct driving posture.
NOTE
. Start the user registration after adjusting the seat position, outside mirror angle, and reverse tilt-down outside mirror angle. If they are adjusted during user registration, it
|
may be disrupted. Refer to“ Power Seat” FP33 or“ Outside Mirrors” FP301.
. If the ignition switch is turned to the“ OFF” position before user registration is complete, the information of the adjusted seat position, outside mirror angles, and reverse tilt-down outside mirror angle will not be saved.
2. Touch( HOME). 3.?( Settings) 4.?“ Car” 5.?“ Driver Monitoring System” 6.?“ Register User”
|
7. Select the preferred user from the list. |
3
Instruments and Controls
|
|||||||
– CONTINUED – |
