206

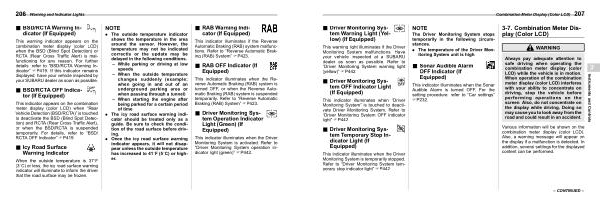

Warning and Indicator Lights
& BSD / RCTA Warning Indicator ( If Equipped ) s03ae80
This warning indicator appears on the combination meter display ( color LCD ) when the BSD ( Blind Spot Detection ) or RCTA ( Rear Cross Traffic Alert ) is malfunctioning for any reason . For further details , refer to “ BSD / RCTA Warning Indicator ” FP419 . If this indicator remains displayed , have your vehicle inspected by your SUBARU dealer as soon as possible .
& BSD / RCTA OFF Indicator ( If Equipped ) s03ae86
This indicator appears on the combination meter display ( color LCD ) when “ Rear Vehicle Detection ( BSD / RCTA )” is touched to deactivate the BSD ( Blind Spot Detection ) and RCTA ( Rear Cross Traffic Alert ), or when the BSD / RCTA is suspended temporarily . For details , refer to “ BSD / RCTA OFF Indicator ” FP419 .
& Icy Road Surface Warning Indicator s03ae82
When the outside temperature is 378F ( 38C ) or less , the icy road surface warning indicator will illuminate to inform the driver that the road surface may be frozen .
NOTE
. The outside temperature indicator shows the temperature in the area around the sensor . However , the temperature may not be indicated correctly or the update may be delayed in the following conditions . – While parking or driving at low speeds
– When the outside temperature changes suddenly ( example : when going in and out of an underground parking area or when passing through a tunnel )
– When starting the engine after being parked for a certain period of time
. The icy road surface warning indicator should be treated only as a guide . Be sure to check the condition of the road surface before driving .
. Once the icy road surface warning indicator appears , it will not disappear unless the outside temperature has increased to 418F ( 58C ) or higher .
& RAB Warning Indicator ( If Equipped ) s03ae91
This indicator illuminates if the Reverse Automatic Braking ( RAB ) system malfunctions . Refer to “ Reverse Automatic Braking ( RAB ) System ” FP423 .
& RAB OFF Indicator ( If Equipped ) s03ae92
This indicator illuminates when the Reverse Automatic Braking ( RAB ) system is turned OFF , or when the Reverse Automatic Braking ( RAB ) system is suspended temporarily . Refer to “ Reverse Automatic Braking ( RAB ) System ” FP423 .
& Driver Monitoring System Operation Indicator Light ( Green ) ( If Equipped ) s03aea4
This indicator illuminates when the Driver Monitoring System is activated . Refer to “ Driver Monitoring System operation indicator light ( green )” FP442 .
