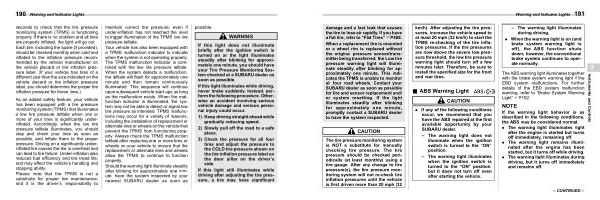

Warning and Indicator Lights 191 |
||||||||||
|
damage and a fast leak that causes the tire to lose air rapidly . If you have a flat tire , refer to “ Flat Tires ” FP488 .
When a replacement tire is mounted or a wheel rim is replaced without the original pressure sensor / transmitter being transferred , the Low tire pressure warning light will illuminate steadily after blinking for approximately one minute . This indicates the TPMS is unable to monitor all four road wheels . Contact your SUBARU dealer as soon as possible for tire and sensor replacement and / or system resetting . If the light illuminates steadily after blinking for approximately one minute , promptly contact a SUBARU dealer to have the system inspected .
|
CAUTION
The tire pressure monitoring system is NOT a substitute for manually checking tire pressure . The tire pressure should be checked periodically ( at least monthly ) using a tire gauge . After any change to tire pressure ( s ), the tire pressure monitoring system will not re-check tire inflation pressures until the vehicle is first driven more than 20 mph ( 32
|
km / h ). After adjusting the tire pressures , increase the vehicle speed to at least 20 mph ( 32 km / h ) to start the TPMS re-checking of the tire inflation pressures . If the tire pressures are now above the severe low pressure threshold , the low tire pressure warning light should turn off a few minutes later . Therefore , be sure to install the specified size for the front and rear tires .
& ABS Warning Light
|
CAUTION
s03ae09
|
. If any of the following conditions occur , we recommend that you have the ABS repaired at the first available opportunity by your SUBARU dealer .
– The warning light does not illuminate when the ignition switch is turned to the “ ON ” position .
– The warning light illuminates when the ignition switch is turned to the “ ON ” position , but it does not turn off even after starting the vehicle .
|
– The warning light illuminates during driving .
. When the warning light is on ( and brake system warning light is off ), the ABS function shuts down ; however , the conventional brake system continues to operate normally .
The ABS warning light illuminates together with the brake system warning light if the EBD system malfunctions . For further details of the EBD system malfunction warning , refer to “ Brake System Warning Light ” FP192 .
NOTE
If the warning light behavior is as described in the following conditions , the ABS may be considered normal .
. The warning light illuminates right after the engine is started but turns off immediately , remaining off .
. The warning light remains illuminated after the engine has been started , but it turns off while driving .
. The warning light illuminates during driving , but it turns off immediately and remains off .
– CONTINUED –
|
3
Instruments and Controls
|
