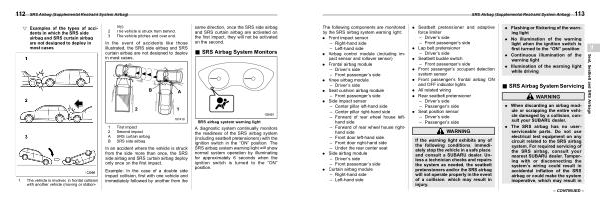

The following components are monitored by the SRS airbag system warning light :
. Front impact sensor – Right-hand side – Left-hand side
. Airbag control module ( including impact sensor and rollover sensor )
. Frontal airbag module – Driver ’ s side – Front passenger ’ s side
. Knee airbag module – Driver ’ s side
. Seat cushion airbag module – Front passenger ’ s side
. Side impact sensor – Center pillar left-hand side – Center pillar right-hand side – Forward of rear wheel house lefthand side – Forward of rear wheel house righthand side – Front door left-hand side – Front door right-hand side – Under the rear center seat
. Side airbag module – Driver ’ s side – Front passenger ’ s side
. Curtain airbag module – Right-hand side – Left-hand side
|
. Seatbelt pretensioner and adaptive force limiter – Driver ’ s side – Front passenger ’ s side
. Lap belt pretensioner – Driver ’ s side . Seatbelt buckle switch
– Front passenger ’ s side . Front passenger ’ s occupant detection system sensor
. Front passenger ’ s frontal airbag ON and OFF indicator lights
. All related wiring
. Rear seatbelt pretensioner – Driver ’ s side – Passenger ’ s side
. Seat position sensor – Driver ’ s side – Passenger ’ s side
|
WARNING
If the warning light exhibits any of the following conditions , immediately stop the vehicle in a safe place , and consult a SUBARU dealer . Unless a technician checks and repairs the system as needed , the seatbelt pretensioners and / or the SRS airbag will not operate properly in the event of a collision , which may result in injury .
|
. Flashing or flickering of the warning light
. No illumination of the warning light when the ignition switch is first turned to the “ ON ” position
. Continuous illumination of the warning light
. Illumination of the warning light while driving
& SRS Airbag System Servicing s01ah05
WARNING
|
. When discarding an airbag module or scrapping the entire vehicle damaged by a collision , consult your SUBARU dealer .
. The SRS airbag has no userserviceable parts . Do not use electrical test equipment on any circuit related to the SRS airbag system . For required servicing of the SRS airbag , consult your nearest SUBARU dealer . Tampering with or disconnecting the system ’ s wiring could result in accidental inflation of the SRS airbag or could make the system inoperative , which may result in
– CONTINUED –
|
1
Seat , Seatbelt and SRS Airbags
|
