102
SRS Airbag( Supplemental Restraint System Airbag)

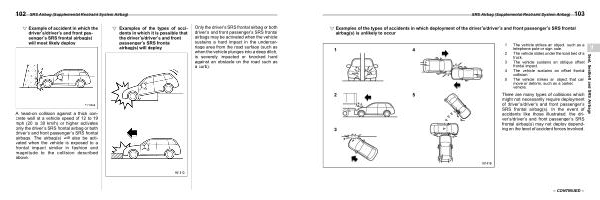

! Example of accident in which the driver’ s / driver’ s and front passenger’ s SRS frontal airbag( s) will most likely deploy s01ah021101
! Examples of the types of accidents in which it is possible that the driver’ s / driver’ s and front passenger’ s SRS frontal airbag( s) will deploy s01ah021102
Only the driver’ s SRS frontal airbag or both driver’ s and front passenger’ s SRS frontal airbags may be activated when the vehicle sustains a hard impact in the undercarriage area from the road surface( such as when the vehicle plunges into a deep ditch, is severely impacted or knocked hard against an obstacle on the road such as a curb).
A head-on collision against a thick concrete wall at a vehicle speed of 12 to 19 mph( 20 to 30 km / h) or higher activates only the driver’ s SRS frontal airbag or both driver’ s and front passenger’ s SRS frontal airbags. The airbag( s) will also be activated when the vehicle is exposed to a frontal impact similar in fashion and magnitude to the collision described above.
