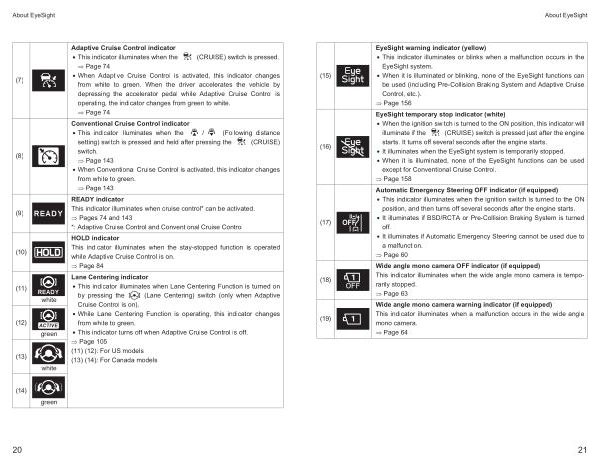

About EyeSight
( 15 )
( 16 )
( 17 )
( 18 )
( 19 )
EyeSight warning indicator ( yellow )
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system .
• When it is illuminated or blinking , none of the EyeSight functions can be used ( including Pre-Collision Braking System and Adaptive Cruise Control , etc .).
� Page 156
EyeSight temporary stop indicator ( white )
• When the ignition switch is turned to the ON position , this indicator will illuminate if the ( CRUISE ) switch is pressed just after the engine starts . It turns off several seconds after the engine starts .
• It illuminates when the EyeSight system is temporarily stopped .
• When it is illuminated , none of the EyeSight functions can be used except for Conventional Cruise Control .
� Page 158
Automatic Emergency Steering OFF indicator ( if equipped )
• This indicator illuminates when the ignition switch is turned to the ON position , and then turns off several seconds after the engine starts .
• It illuminates if BSD / RCTA or Pre-Collision Braking System is turned off .
• It illuminates if Automatic Emergency Steering cannot be used due to a malfunction .
� Page 60 Wide angle mono camera OFF indicator ( if equipped ) This indicator illuminates when the wide angle mono camera is temporarily stopped .
� Page 63 Wide angle mono camera warning indicator ( if equipped ) This indicator illuminates when a malfunction occurs in the wide angle mono camera .
� Page 64
21
