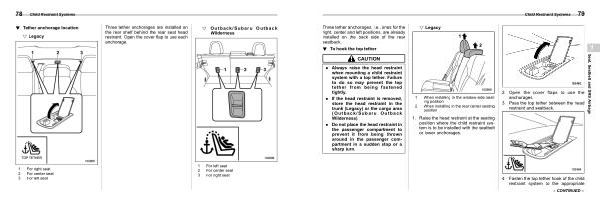

Subaru Outback Manuals 2024 Outback Owner's Manual | Page 87

Child Restraint Systems 79
Three tether anchorages , i . e ., ones for the right , center and left positions , are already installed on the back side of the rear seatback .
! To hook the top tether
CAUTION
s01ag0902
.
Always raise the head restraint
when mounting a child restraint
system with a top tether . Failure
to do so may prevent the top
tether
from
being
fastened
tightly .
.
If the head restraint is removed ,
store the head restraint in the
trunk ( Legacy ) or the cargo area
( Outback / Subaru
Outback
Wilderness ).
.
Do not place the head restraint in
the passenger compartment to
prevent it from being thrown
around in the passenger compartment
in a sudden stop or a
sharp turn .
! Legacy
s01ag090201
1 When installing in the window-side seating position
2 When installing in the rear center seating position
1 . Raise the head restraint at the seating position where the child restraint system is to be installed with the seatbelt or lower anchorages .
2 . Open the cover flaps to use the anchorages .
3 . Pass the top tether between the head restraint and seatback .
1
Seat , Seatbelt and SRS Airbags
4 . Fasten the top tether hook of the child restraint system to the appropriate
– CONTINUED –
