74

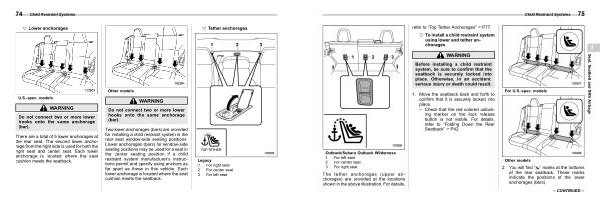

Child Restraint Systems
! Lower anchorages |
s01ag070101 |
|
|
! Tether anchorages |
s01ag070102 |
U . S . -spec . models
WARNING
Do not connect two or more lower hooks onto the same anchorage ( bar ).
There are a total of 5 lower anchorages at the rear seat . The second lower anchorage from the right side is used for both the right seat and center seat . Each lower anchorage is located where the seat cushion meets the seatback .
Other models
WARNING
Do not connect two or more lower hooks onto the same anchorage ( bar ).
Two lower anchorages ( bars ) are provided for installing a child restraint system in the rear seat window-side seating positions . Lower anchorages ( bars ) for window-side seating positions may be used for a seat in the center seating position if a child restraint system manufacturer ’ s instructions permit and specify using anchors as far apart as those in this vehicle . Each lower anchorage is located where the seat cushion meets the seatback .
Legacy 1 For right seat 2 For center seat 3 For left seat
