not fastened to the anchor buckle on the right-hand side ), it cannot properly restrain the wearer in position in an accident , possibly resulting in serious injury or death . |
1 |
|||||||
|

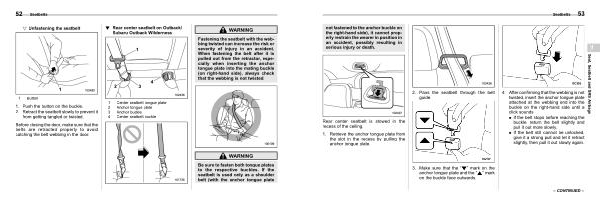

Rear center seatbelt is stowed in the recess of the ceiling .
1 . Retrieve the anchor tongue plate from the slot in the recess by pulling the anchor tongue plate .
|
2 . Pass the seatbelt through the belt guide . |
4 . After confirming that the webbing is not twisted , insert the anchor tongue plate attached at the webbing end into the buckle on the right-hand side until a click sounds . . If the belt stops before reaching the buckle , return the belt slightly and pull it out more slowly .
. If the belt still cannot be unlocked , give it a strong pull and let it retract slightly , then pull it out slowly again .
|
Seat , Seatbelt and SRS Airbags |
|||||
3 . Make sure that the “ ” mark on the anchor tongue plate and the “ ” mark on the buckle face outwards . |
||||||||
– CONTINUED – |
