Never replace a fuse with one having a higher rating or with material other than a fuse because serious damage or a fire could result . |
||||||||
|
NOTE
Fuse rating and using circuit are described on each behind the fuse box cover .

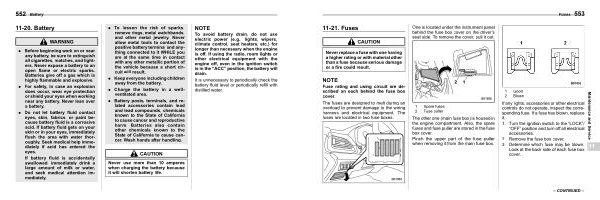

The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment . The fuses are located in two fuse boxes .
|
1 Spare fuses 2 Fuse puller
The other one ( main fuse box ) is housed in the engine compartment . Also , the spare fuses and fuse puller are stored in the fuse box cover .
Pinch the upper part of the fuse puller when removing it from the main fuse box .
|
1 Good 2 Blown
If any lights , accessories or other electrical controls do not operate , inspect the corresponding fuse . If a fuse has blown , replace it .
1 . Turn the ignition switch to the “ LOCK ”/ “ OFF ” position and turn off all electrical accessories .
2 . Remove the fuse box cover .
3 . Determine which fuse may be blown . Look at the back side of each fuse box cover .
|
Maintenance and Service
11
|
|||||
– CONTINUED – |
