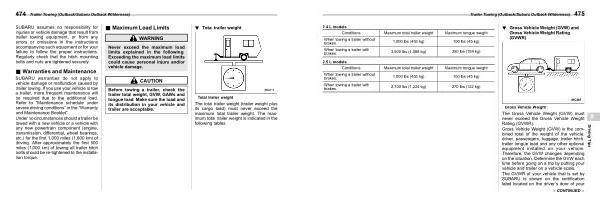

Trailer Towing ( Outback / Subaru Outback Wilderness ) 475
2.4 L models Conditions |
Maximum total trailer weight |
Maximum tongue weight |
When towing a trailer without brakes . |
1,000 lbs ( 453 kg ) |
100 lbs ( 45 kg ) |
When towing a trailer with brakes . |
3,500 lbs ( 1,588 kg ) |
350 lbs ( 159 kg ) |
! Gross Vehicle Weight ( GVW ) and Gross Vehicle Weight Rating ( GVWR ) s08al0202
2.5 L models Conditions |
Maximum total trailer weight |
Maximum tongue weight |
When towing a trailer without brakes . |
1,000 lbs ( 453 kg ) |
100 lbs ( 45 kg ) |
When towing a trailer with brakes . |
2,700 lbs ( 1,224 kg ) |
270 lbs ( 122 kg ) |
Gross Vehicle Weight
The Gross Vehicle Weight ( GVW ) must never exceed the Gross Vehicle Weight Rating ( GVWR ).
Gross Vehicle Weight ( GVW ) is the combined total of the weight of the vehicle , driver , passengers , luggage , trailer hitch , trailer tongue load and any other optional equipment installed on your vehicle . Therefore , the GVW changes depending on the situation . Determine the GVW each time before going on a trip by putting your vehicle and trailer on a vehicle scale .
The GVWR of your vehicle that is set by SUBARU is shown on the certification label located on the driver ’ s door of your
– CONTINUED –
8
Driving Tips
