432
Reverse Automatic Braking ( RAB ) System
accelerator pedal is depressed .
. The accelerator pedal is depressed continuously ( In this case , limited acceleration will be canceled and the vehicle will continue reversing .)
. The select lever is shifted to a position other than the “ R ” position .
NOTE
The system will be canceled if the object is no longer detected .
& Reverse Automatic Braking ( RAB ) System ON / OFF Setting s07bn05

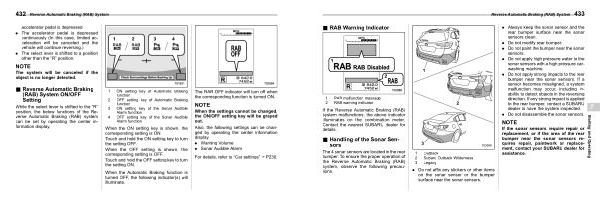

While the select lever is shifted to the “ R ” position , the below functions of the Reverse Automatic Braking ( RAB ) system can be set by operating the center information display .
1 ON setting key of Automatic Braking function
2 OFF setting key of Automatic Braking function
3 ON setting key of the Sonar Audible Alarm function
4 OFF setting key of the Sonar Audible Alarm function
When the ON setting key is shown , the corresponding setting is ON .
Touch and hold the ON setting key to turn the setting OFF .
When the OFF setting is shown , the corresponding setting is OFF .
Touch and hold the OFF setting key to turn the setting ON .
When the Automatic Braking function is turned OFF , the following indicator ( s ) will illuminate .
The RAB OFF indicator will turn off when the corresponding function is turned ON .
NOTE
When the settings cannot be changed , the ON / OFF setting key will be grayed out .
Also , the following settings can be changed by operating the center information display .
. Warning Volume . Sonar Audible Alarm
For details , refer to “ Car settings ” FP230 .
