430

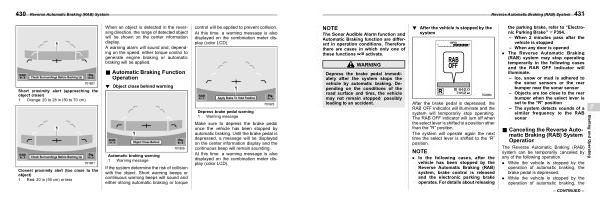

Reverse Automatic Braking ( RAB ) System
When an object is detected in the reversing direction , the range of detected object will be shown on the center information display .
A warning alarm will sound and , depending on the speed , either torque control to generate engine braking or automatic braking will be applied . control will be applied to prevent collision .
At this time , a warning message is also displayed on the combination meter display ( color LCD ).
Short proximity alert ( approaching the object closer )
1 Orange : 20 to 28 in ( 50 to 70 cm )
& Automatic Braking Function Operation s07bn08
! Object close behind warning s07bn0801
Closest proximity alert ( too close to the object ) 1 Red : 20 in ( 50 cm ) or less
Automatic braking warning 1 Warning message
If the system determine the risk of collision with the object . Short warning beeps or continuous warning beeps will sound and either strong automatic braking or torque
Depress brake pedal warning 1 Warning message
Make sure to depress the brake pedal once the vehicle has been stopped by automatic braking . Until the brake pedal is depressed , a message will be displayed on the center information display and the continuous beep will remain sounding .
At this time , a warning message is also displayed on the combination meter display ( color LCD ).
