358
Fuel
and emission control system may be damaged . It could also lead to fuel spillage and a fire .
. Immediately put fuel in the tank whenever the low fuel warning light illuminates . Engine misfires as a result of an empty tank could cause damage to the engine . Continuing to operate your vehicle at an extremely low fuel level may result in a reduction of engine performance .
1 . Remove the access cover at the rightside of the trunk trim .
filler lid .

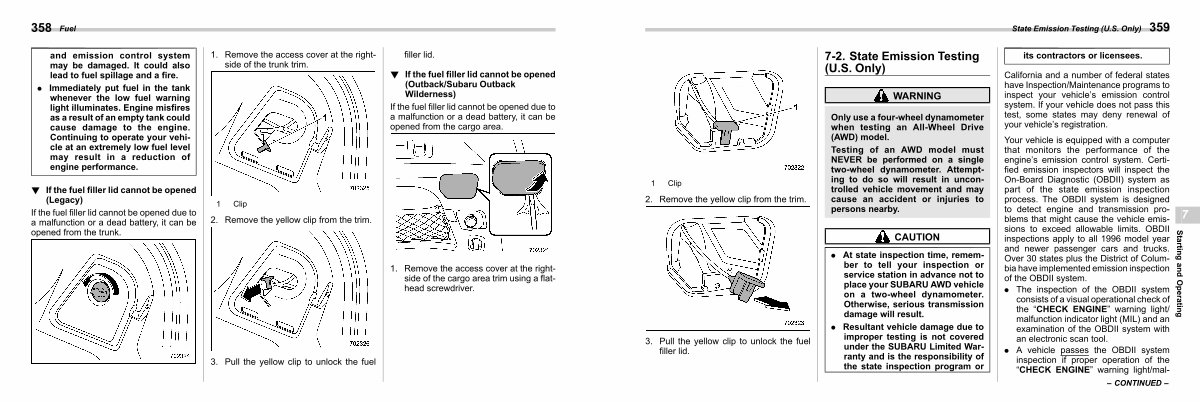

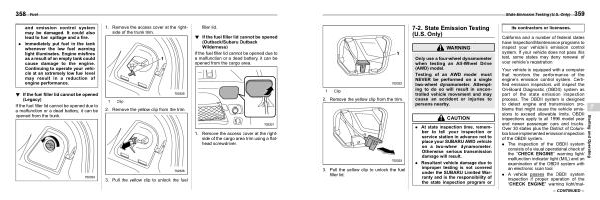

! If the fuel filler lid cannot be opened ( Outback / Subaru Outback Wilderness ) s07aa0203
If the fuel filler lid cannot be opened due to a malfunction or a dead battery , it can be opened from the cargo area .
! If the fuel filler lid cannot be opened ( Legacy ) s07aa0204
If the fuel filler lid cannot be opened due to a malfunction or a dead battery , it can be opened from the trunk .
1 Clip 2 . Remove the yellow clip from the trim .
1 . Remove the access cover at the rightside of the cargo area trim using a flathead screwdriver .
3 . Pull the yellow clip to unlock the fuel
