Climate Control Panel 313

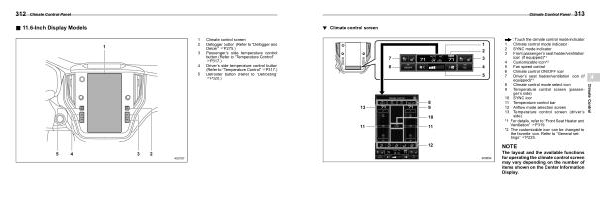

! Climate control screen s04ag1201
: Touch the climate control mode indicator 1 Climate control mode indicator 2 SYNC mode indicator
3 Front passenger ’ s seat heater / ventilation icon ( if equipped )* 1
4 Customizable icon * 2 5 Fan speed control 6 Climate control ON / OFF icon
7 Driver ’ s seat heater / ventilation icon ( if equipped )* 1
8 Climate control mode select icon 9 Temperature control screen ( passenger ’ s side )
10 SYNC icon 11 Temperature control bar 12 Airflow mode selection screen 13 Temperature control screen ( driver ’ s side )
* 1 : For details , refer to “ Front Seat Heater and Ventilation ” FP319 .
* 2 : The customizable icon can be changed to the favorite icon . Refer to “ General settings ” FP225 .
4
Climate Control
NOTE
The layout and the available functions for operating the climate control screen may vary depending on the number of items shown on the Center Information Display .
