Ventilator Control
|

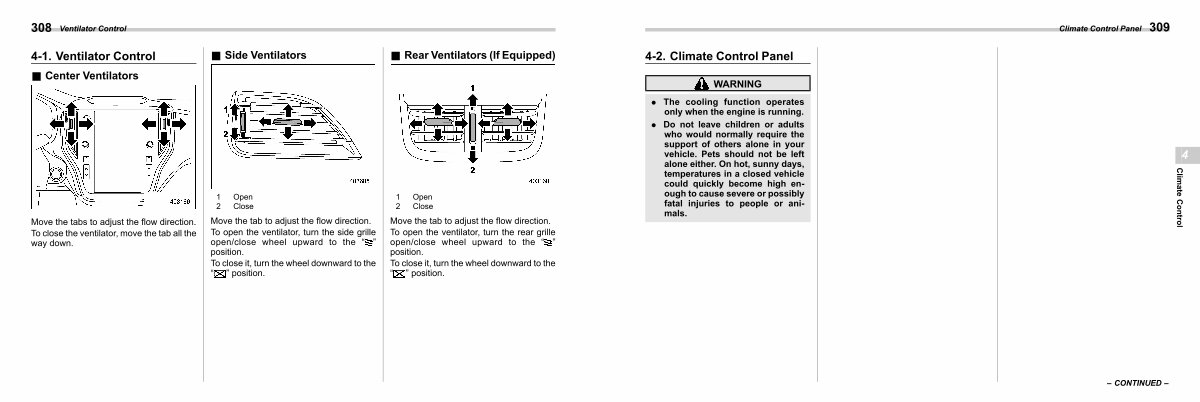

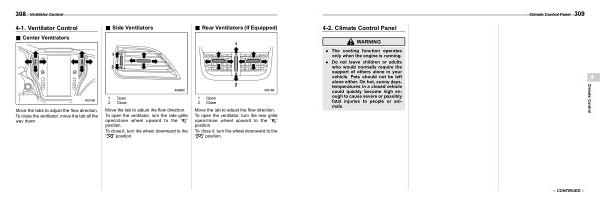

4-1 . Ventilator Control
& Center Ventilators
|
|
|
|
|
s04af
s04af01
|
& Side Ventilators |
s04af02 |
& Rear Ventilators ( If Equipped ) s04af04 |
Move the tabs to adjust the flow direction .
To close the ventilator , move the tab all the way down .
1 Open 2 Close
Move the tab to adjust the flow direction .
To open the ventilator , turn the side grille open / close wheel upward to the “ ” position .
To close it , turn the wheel downward to the “ ” position .
1 Open 2 Close
Move the tab to adjust the flow direction .
To open the ventilator , turn the rear grille open / close wheel upward to the “ ” position .
To close it , turn the wheel downward to the “ ” position .
