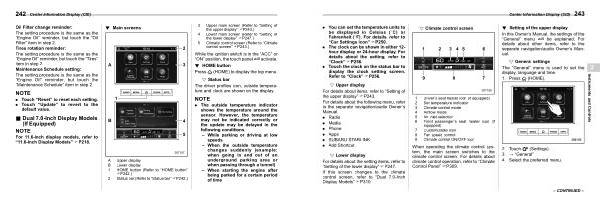

Center Information Display ( CID ) 243 |
|||||||||
|
. You can set the temperature units to be displayed in Celsius ( 8C ) or Fahrenheit ( 8F ). For details , refer to “ Car Settings icon ” FP250 .
. The clock can be shown in either 12- hour display or 24-hour display . For details about the setting , refer to “ Clock ” FP256 .
. Touch the clock on the status bar to display the clock setting screen . Refer to “ Clock ” FP256 .
! Upper display s03bs060902
For details about items , refer to “ Setting of the upper display ” FP243 .
For details about the following menu , refer to the separate navigation / audio Owner ’ s Manual .
. Radio . Media . Phone . Apps . SUBARU STARLINK . Add Shortcut
! Lower display s03bs060903
For details about the setting items , refer to “ Setting of the lower display ” FP247 .
If this screen changes to the climate control screen , refer to “ Dual 7.0-Inch Display Models ” FP310 .
|
! Climate control screen
s03bs060904
|
1 Driver ’ s seat heater icon ( if equipped ) 2 Set temperature indicator 3 Climate control mode 4 Airflow mode 5 Air inlet selection
6 Front passenger ’ s seat heater icon ( if equipped )
7 Customizable icon 8 Fan speed control 9 Climate control ON / OFF icon
When operating the climate control system , the main screen switches to the climate control screen . For details about climate control operation , refer to “ Climate Control Panel ” FP309 .
|
! Setting of the upper display s03bs0602
In this Owner ’ s Manual , the settings of the “ General ” menu will be explained . For details about other items , refer to the separate navigation / audio Owner ’ s Manual .
|
! General settings s03bs060204
The “ General ” menu is used to set the display , language and time .
1 . Press ( HOME ).
|
2 . Touch ( Settings ). 3 . ? “ General ” 4 . Select the preferred menu . |
3
Instruments and Controls
|
|||
– CONTINUED – |
