218
Center Information Display ( CID )
your finger .
NOTE
Swipe operations may not be performed smoothly in high altitudes .
& 11.6-Inch Display Models ( If Equipped ) s03bs05
NOTE
For dual 7.0-inch display models , refer to “ Dual 7.0-Inch Display Models ” FP242 .

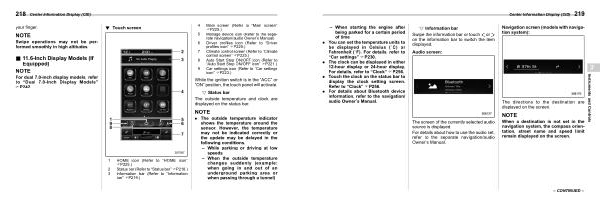

! Touch screen s03bs0501
1 HOME icon ( Refer to “ HOME icon ” FP225 .)
2 Status bar ( Refer to “ Status bar ” FP218 .)
3 Information bar ( Refer to “ Information bar ” FP219 .)
4 Main screen ( Refer to “ Main screen ” FP225 .)
5 Manage device icon ( Refer to the separate navigation / audio Owner ’ s Manual )
6 Driver profiles icon ( Refer to “ Driver profiles icon ” FP225 .)
7 Climate control screen ( Refer to “ Climate control screen ” FP225 .)
8 Auto Start Stop ON / OFF icon ( Refer to “ Auto Start Stop ON / OFF icon ” FP221 .)
9 Car settings icon ( Refer to “ Car settings icon ” FP223 .)
While the ignition switch is in the “ ACC ” or “ ON ” position , the touch panel will activate .
! Status bar s03bs050101
The outside temperature and clock are displayed on the status bar .
NOTE
. The outside temperature indicator shows the temperature around the sensor . However , the temperature may not be indicated correctly or the update may be delayed in the following conditions . – While parking or driving at low speeds
– When the outside temperature changes suddenly ( example : when going in and out of an underground parking area or when passing through a tunnel )
