About EyeSight
( 1 )
( 2 )
( 3 )
( 4 )
( 5 )
( 6 )

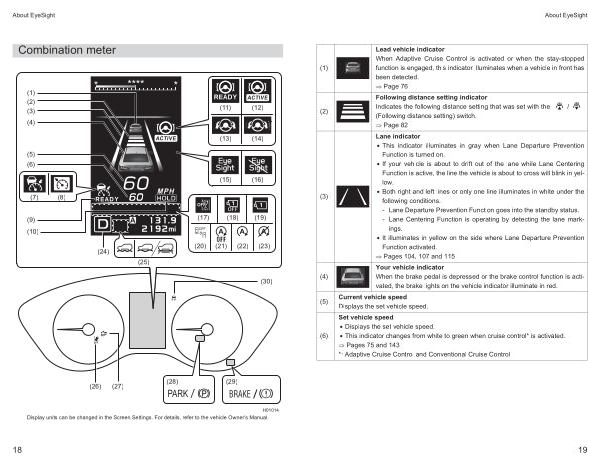

Lead vehicle indicator When Adaptive Cruise Control is activated or when the stay-stopped function is engaged , this indicator illuminates when a vehicle in front has been detected .
� Page 76 Following distance setting indicator Indicates the following distance setting that was set with the / ( Following distance setting ) switch .
� Page 82
Lane indicator
• This indicator illuminates in gray when Lane Departure Prevention Function is turned on .
• If your vehicle is about to drift out of the lane while Lane Centering Function is active , the line the vehicle is about to cross will blink in yellow .
• Both right and left lines or only one line illuminates in white under the following conditions . - Lane Departure Prevention Function goes into the standby status . - Lane Centering Function is operating by detecting the lane markings .
• It illuminates in yellow on the side where Lane Departure Prevention Function activated .
� Pages 104 , 107 and 115 Your vehicle indicator When the brake pedal is depressed or the brake control function is activated , the brake lights on the vehicle indicator illuminate in red . Current vehicle speed Displays the set vehicle speed . Set vehicle speed
• Displays the set vehicle speed .
• This indicator changes from white to green when cruise control * is activated .
� Pages 75 and 143 *: Adaptive Cruise Control and Conventional Cruise Control
19
