228

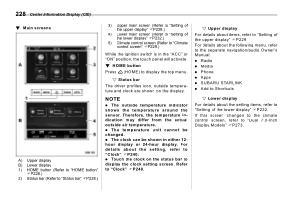

Center Information Display (CID)
! Main screens
s03bs0601
A) Upper display
B) Lower display
1) HOME button (Refer to “HOME button”
☞P228.)
2) Status bar (Refer to “Status bar” ☞P228.)
3) Upper main screen (Refer to “Setting of
the upper display” ☞P229.)
4) Lower main screen (Refer to “Setting of
the lower display” ☞P232.)
5) Climate control screen (Refer to “Climate
control screen” ☞P229.)
While the ignition switch is in the “ACC” or
“ON” position, the touch panel will activate.
! HOME button
s03bs0609
Press (HOME) to display the top menu.
! Status bar
s03bs060901
The driver profiles icon, outside temperature
and clock are shown on the display.
NOTE
. The outside temperature indicator
shows the temperature around the
sensor. Therefore, the temperature indication
may differ from the actual
outside air temperature.
. The temperature unit cannot be
changed.
. The clock can be shown in either 12-
hour display or 24-hour display. For
details about the setting, refer to
“Clock” ☞P240.
. Touch the clock on the status bar to
display the clock setting screen. Refer
to “Clock” ☞P240.
! Upper display
s03bs060902
For details about items, refer to “Setting of
the upper display” ☞P229.
For details about the following menu, refer
to the separate navigation/audio Owner’s
Manual.
. Radio
. Media
. Phone
. Apps
. SUBARU STARLINK
. Add to Shortcuts
! Lower display
s03bs060903
For details about the setting items, refer to
“Setting of the lower display” ☞P232.
If this screen changes to the climate
control screen, refer to “Dual 7.0-Inch
Display Models” ☞P273.
