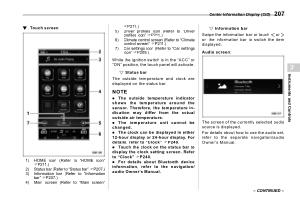

Center Information Display (CID) 207
! Touch screen
s03bs0501
1) HOME icon (Refer to “HOME icon”
☞P211.)
2) Status bar (Refer to “Status bar” ☞P207.)
3) Information bar (Refer to “Information
bar” ☞P207.)
4) Main screen (Refer to “Main screen”
☞P211.)
5) Driver profiles icon (Refer to “Driver
profiles icon” ☞P211.)
6) Climate control screen (Refer to “Climate
control screen” ☞P211.)
7) Car settings icon (Refer to “Car settings
icon” ☞P209.)
While the ignition switch is in the “ACC” or
“ON” position, the touch panel will activate.
! Status bar
s03bs050101
The outside temperature and clock are
displayed on the status bar.
NOTE
. The outside temperature indicator
shows the temperature around the
sensor. Therefore, the temperature indication
may differ from the actual
outside air temperature.
. The temperature unit cannot be
changed.
. The clock can be displayed in either
12-hour display or 24-hour display. For
details, refer to “Clock” ☞P240.
. Touch the clock on the status bar to
display the clock setting screen. Refer
to “Clock” ☞P240.
. For details about Bluetooth device
information, refer to the navigation/
audio Owner’s Manual.
! Information bar
s03bs050102
Swipe the information bar or touch or
on the information bar to switch the item
displayed.
Audio screen:
The screen of the currently selected audio
source is displayed.
For details about how to use the audio set,
refer to the separate navigation/audio
Owner’s Manual.
– CONTINUED –
3
Instruments and Controls
