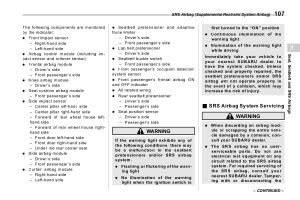

SRS Airbag (Supplemental Restraint System Airbag) 107
The following components are monitored
by the indicator:
. Front impact sensor
– Right-hand side
– Left-hand side
. Airbag control module (including impact
sensor and rollover sensor)
. Frontal airbag module
– Driver’s side
– Front passenger’s side
. Knee airbag module
– Driver’s side
. Seat cushion airbag module
– Front passenger’s side
. Side impact sensor
– Center pillar left-hand side
– Center pillar right-hand side
– Forward of rear wheel house lefthand
side
– Forward of rear wheel house righthand
side
– Front door left-hand side
– Front door right-hand side
– Under the rear center seat
. Side airbag module
– Driver’s side
– Front passenger’s side
. Curtain airbag module
– Right-hand side
– Left-hand side
. Seatbelt pretensioner and adaptive
force limiter
– Driver’s side
– Front passenger’s side
. Lap belt pretensioner
– Driver’s side
. Seatbelt buckle switch
– Front passenger’s side
. Front passenger’s occupant detection
system sensor
. Front passenger’s frontal airbag ON
and OFF indicator
. All related wiring
. Rear seatbelt pretensioner
– Driver’s side
– Passenger’s side
. Seat position sensor
– Driver’s side
– Passenger’s side
WARNING
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system.
. Flashing or flickering of the warning
light
. No illumination of the warning
light when the ignition switch is
first turned to the “ON” position
. Continuous illumination of the
warning light
. Illumination of the warning light
while driving
Immediately take your vehicle to
your nearest SUBARU dealer to
have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbag will not operate properly in
the event of a collision, which may
increase the risk of injury.
& SRS Airbag System Servicing
s01ah05
WARNING
. When discarding an airbag module
or scrapping the entire vehicle
damaged by a collision, consult
your SUBARU dealer.
. The SRS airbag has no userserviceable
parts. Do not use
electrical test equipment on any
circuit related to the SRS airbag
system. For required servicing of
the SRS airbag, consult your
nearest SUBARU dealer. Tampering
with or disconnecting the
– CONTINUED –
1
Seat, Seatbelt and SRS Airbags
