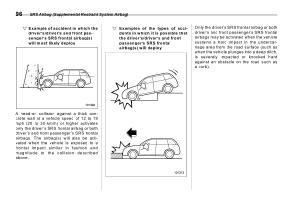

SRS Airbag (Supplemental Restraint System Airbag)
! Example of accident in which the
driver’s/driver’s and front passenger’s
SRS frontal airbag(s)
will most likely deploy
s01ah021101
! Examples of the types of accidents
in which it is possible that
the driver’s/driver’s and front
passenger’s SRS frontal
airbag(s) will deploy
s01ah021102
Only the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS frontal
airbags may be activated when the vehicle
sustains a hard impact in the undercarriage
area from the road surface (such as
when the vehicle plunges into a deep ditch,
is severely impacted or knocked hard
against an obstacle on the road such as
a curb).
A head-on collision against a thick concrete
wall at a vehicle speed of 12 to 19
mph (20 to 30 km/h) or higher activates
only the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS frontal
airbags. The airbag(s) will also be activated
when the vehicle is exposed to a
frontal impact similar in fashion and
magnitude to the collision described
above.
