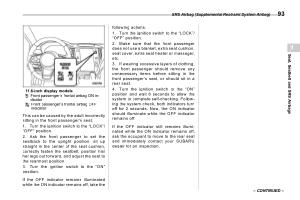

SRS Airbag (Supplemental Restraint System Airbag) 93
11.6-inch display models
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF
indicator
This can be caused by the adult incorrectly
sitting in the front passenger’s seat.
1. Turn the ignition switch to the “LOCK”/
“OFF” position.
2. Ask the front passenger to set the
seatback to the upright position, sit up
straight in the center of the seat cushion,
correctly fasten the seatbelt, position his/
her legs out forward, and adjust the seat to
the rearmost position.
3. Turn the ignition switch to the “ON”
position.
If the OFF indicator remains illuminated
while the ON indicator remains off, take the
following actions.
1. Turn the ignition switch to the “LOCK”/
“OFF” position.
2. Make sure that the front passenger
does not use a blanket, extra seat cushion,
seat cover, extra seat heater or massager,
etc.
3. If wearing excessive layers of clothing,
the front passenger should remove any
unnecessary items before sitting in the
front passenger’s seat, or should sit in a
rear seat.
4. Turn the ignition switch to the “ON”
position and wait 6 seconds to allow the
system to complete self-checking. Following
the system check, both indicators turn
off for 2 seconds. Now, the ON indicator
should illuminate while the OFF indicator
remains off.
If the OFF indicator still remains illuminated
while the ON indicator remains off,
ask the occupant to move to the rear seat
and immediately contact your SUBARU
dealer for an inspection.
– CONTINUED –
1
Seat, Seatbelt and SRS Airbags
