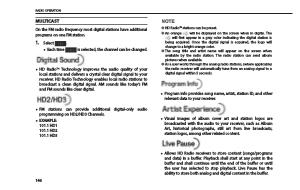

RADIO OPERATION
MULTICAST
On the FM radio frequency most digital stations have additional
programs on one FM station.
1. Select .
� Each time is selected, the channel can be changed.
� HD Radio TM Technology improves the audio quality of your
local stations and delivers a crystal clear digital signal to your
receiver. HD Radio Technology enables local radio stations to
broadcast a clean digital signal. AM sounds like today’s FM
and FM sounds like clear digital.
� FM stations can provide additional digital-only audio
programming on HD2/HD3 Channels.
� EXAMPLE:
101.1 HD1
101.1 HD2
101.1 HD3
NOTE
� HD Radio™ stations can be preset.
� An orange will be displayed on the screen when in digital. The
will first appear in a gray color indicating the digital station is
being acquired. Once the digital signal is acquired, the logo will
change to a bright orange color.
� The song title and artist name will appear on the screen when
available by the radio station. The radio station can send album
pictures when available.
� As a user works through the analog radio stations, (where applicable)
the radio receiver will automatically tune from an analog signal to a
digital signal within 5 seconds.
� Program info provides song name, artist, station ID, and other
relevant data to your receiver.
� Visual images of album cover art and station logos are
broadcasted with the audio to your receiver, such as Album
Art, historical photographs, still art from live broadcasts,
station logos, among other related content.
146
� Allows HD Radio receivers to store content (songs/programs
and data) in a buffer. Playback shall start at any point in the
buffer and shall continue until the end of the buffer or until
the user has selected to stop playback. Live Pause has the
ability to store both analog and digital content in the buffer.
