6-18

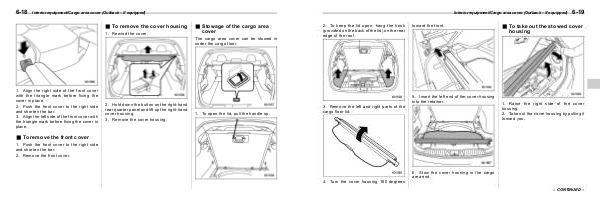

Interior equipment/Cargo area cover (Outback – if equipped)
& To remove the cover housing
S06AK02
1. Rewind the cover.
& Stowage of the cargo area
cover
S06AK04
The cargo area cover can be stowed in
under the cargo floor.
1. Align the right side of the front cover
with the triangle mark before fixing the
cover in place.
2. Push the front cover to the right side
and shorten the bar.
3. Align the left side of the front cover with
the triangle mark before fixing the cover in
place.
& To remove the front cover
S06AK09
1. Push the front cover to the right side
and shorten the bar.
2. Remove the front cover.
2. Hold down the button on the right-hand
rear quarter panel and lift up the right-hand
cover housing.
3. Remove the cover housing.
1. To open the lid, pull the handle up.
