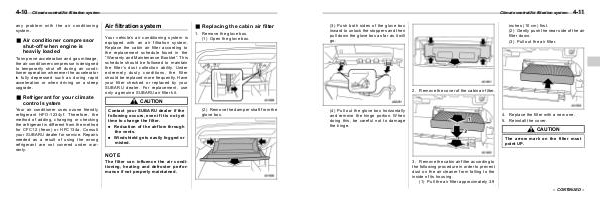

Climate control/Air filtration system
(3) Push both sides of the glove box
inward to unlock the stoppers and then
pull down the glove box as far as it will
go.
4-11
inches (10 cm) first.
(2) Gently push the near side of the air
filter down.
(3) Pull out the air filter.
2. Remove the cover of the cabin air filter.
(4) Pull out the glove box horizontally
and remove the hinge portion. When
doing this, be careful not to damage
the hinge.
4. Replace the filter with a new one.
5. Reinstall the cover.
CAUTION
The arrow mark on the filter must
point UP.
3. Remove the cabin air filter according to
the following procedure in order to prevent
dust on the air cleaner from falling to the
inside of its housing.
(1) Pull the air filter approximately 3.9
– CONTINUED –
