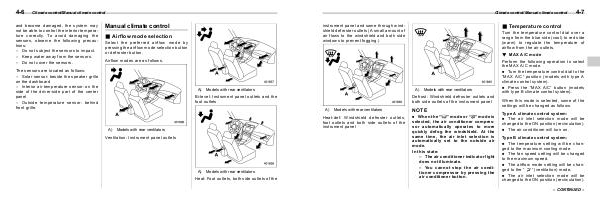

Climate control/Manual climate control
& Temperature control
instrument panel and some through wind-
shield defroster outlets (A small amount of
air flows to the windshield and both side
windows to prevent fogging.)
S04AB05
Turn the temperature control dial over a
range from the blue side (cool) to red side
(warm) to regulate the temperature of
airflow from the air outlets.
A)
Models with rear ventilators
Defrost: Windshield defroster outlets and
both side outlets of the instrument panel
A)
Models with rear ventilators
Heat-def: Windshield defroster outlets,
foot outlets and both side outlets of the
instrument panel
4-7
NOTE
. When the “ ” mode or “ ” mode is
selected, the air conditioner compres-
sor automatically operates to more
quickly defog the windshield. At the
same time, the air inlet selection is
automatically set to the outside air
mode.
In this state:
– The air conditioner indicator light
does not illuminate.
– You cannot stop the air condi-
tioner compressor by pressing the
air conditioner button.
! MAX A/C mode
S04AB0503
Perform the following operation to select
the MAX A/C mode.
. Turn the temperature control dial to the
“MAX A/C” position (models with type A
climate control system).
. Press the “MAX A/C” button (models
with type B climate control system).
When this mode is selected, some of the
settings will be changed as follows.
Type A climate control system:
. The air inlet selection mode will be
changed to the ON position (recirculation).
. The air conditioner will turn on.
Type B climate control system:
. The temperature setting will be chan-
ged to the maximum cooling mode.
. The fan speed setting will be changed
to the maximum speed.
. The airflow mode setting will be chan-
ged to the “
” (ventilation) mode.
. The air inlet selection mode will be
changed to the ON position (recirculation).
– CONTINUED –
