4-4

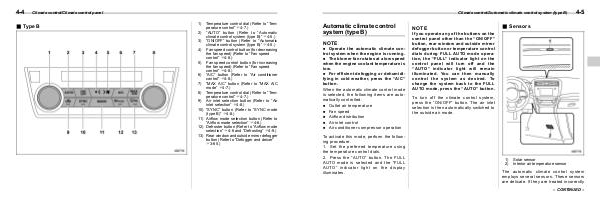

Climate control/Climate control panel
1)
& Type B
S04AG02
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
Temperature control dial (Refer to “Tem-
perature control” F4-7.)
“AUTO” button (Refer to “Automatic
climate control system (type B)” F4-5.)
“ON/OFF” button (Refer to “Automatic
climate control system (type B)” F4-5.)
Fan speed control button (for decreasing
the fan speed) (Refer to “Fan speed
control” F4-8.)
Fan speed control button (for increasing
the fan speed) (Refer to “Fan speed
control” F4-8.)
“A/C” button (Refer to “Air conditioner
control” F4-8.)
“MAX A/C” button (Refer to “MAX A/C
mode” F4-7.)
Temperature control dial (Refer to “Tem-
perature control” F4-7.)
Air inlet selection button (Refer to “Air
inlet selection” F4-8.)
“SYNC” button (Refer to “SYNC mode
(type B)” F4-8.)
Airflow mode selection button (Refer to
“Airflow mode selection” F4-6.)
Defroster button (Refer to “Airflow mode
selection” F4-6 and “Defrosting” F4-9.)
Rear window and outside mirror defogger
button (Refer to “Defogger and deicer”
F3-65.)
