BASIC FUNCTION
BASIC FUNCTION

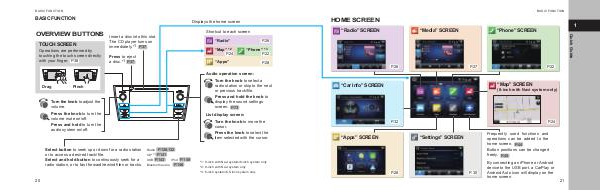

OVERVIEW BUTTONS
TOUCH SCREEN
Operations are performed by
touching the touch screen directly
with your finger. P.38
Displays the home screen
Shortcut to each screen
Insert a disc into this slot.
The CD player turns on
immediately.* 1 P.37
“Radio”
“Map”
* 2
P.24
Press to eject
a disc.* 1 P.37
P.26
“Phone” * 3
“Apps”
P.22
P.28
Audio operation screen:
Drag
Turn the knob to select a
radio station or skip to the next
or previous track/file.
Pinch
Press and hold the knob to
display the sound settings
screen. P.73
Turn the knob to adjust the
volume.
Press the knob to turn the
volume mute on/off.
List display screen:
Turn the knob to move the
cursor.
Press and hold to turn the
audio system on/off.
Select button to seek up or down for a radio station
or to access a desired track/file.
Select and hold button to continuously seek for a
radio station, or to fast forward/rewind files or tracks.
Press the knob to select the
item selected with the cursor.
Radio P.126,132
CD* 1 P.141
USB P.143
Bluetooth audio
iPod P.145
P.148
*1: 8-inch with Navi system/8-inch system only
*2: 8-inch with Navi system only
*3: 8-inch system/6.5-inch system only
20
