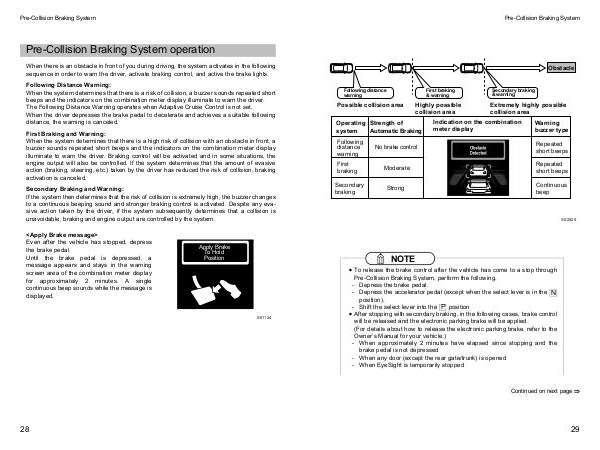

Pre-Collision Braking System
Obstacle
Following distance
warning
First braking
& warning
Possible collision area
Highly possible
collision area
Operating Strength of
Automatic Braking
system
Following
distance
warning
First
braking
Secondary
braking
Secondary braking
& warning
Extremely highly possible
collision area
Indication on the combination
meter display
Warning
buzzer type
No brake control Repeated
short beeps
Moderate Repeated
short beeps
Strong Continuous
beep
S02525
NOTE
• To release the brake control after the vehicle has come to a stop through
Pre-Collision Braking System, perform the following.
- Depress the brake pedal.
- Depress the accelerator pedal (except when the select lever is in the N
position).
- Shift the select lever into the P position
• After stopping with secondary braking, in the following cases, brake control
will be released and the electronic parking brake will be applied.
(For details about how to release the electronic parking brake, refer to the
Owner’s Manual for your vehicle.)
- When approximately 2 minutes have elapsed since stopping and the
brake pedal is not depressed
- When any door (except the rear gate/trunk) is opened
- When EyeSight is temporarily stopped
Continued on next page
29
