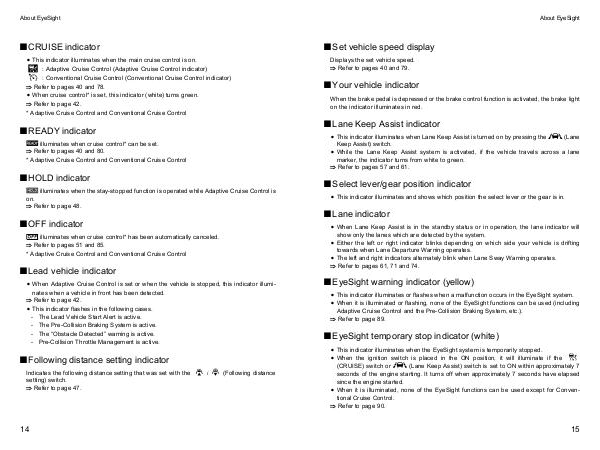

About EyeSight
■ Set vehicle speed display
Displays the set vehicle speed.
Refer to pages 40 and 79.
■ Your vehicle indicator
When the brake pedal is depressed or the brake control function is activated, the brake light
on the indicator illuminates in red.
■ Lane Keep Assist indicator
• This indicator illuminates when Lane Keep Assist is turned on by pressing the
(Lane
Keep Assist) switch.
• While the Lane Keep Assist system is activated, if the vehicle travels across a lane
marker, the indicator turns from white to green.
Refer to pages 57 and 61.
■ Select lever/gear position indicator
• This indicator illuminates and shows which position the select lever or the gear is in.
■ Lane indicator
• When Lane Keep Assist is in the standby status or in operation, the lane indicator will
show only the lanes which are detected by the system.
• Either the left or right indicator blinks depending on which side your vehicle is drifting
towards when Lane Departure Warning operates.
• The left and right indicators alternately blink when Lane Sway Warning operates.
Refer to pages 61, 71 and 74.
■ EyeSight warning indicator (yellow)
• This indicator illuminates or flashes when a malfunction occurs in the EyeSight system.
• When it is illuminated or flashing, none of the EyeSight functions can be used (including
Adaptive Cruise Control and the Pre-Collision Braking System, etc.).
Refer to page 89.
■ EyeSight temporary stop indicator (white)
• This indicator illuminates when the EyeSight system is temporarily stopped.
• When the ignition switch is placed in the ON position, it will illuminate if the
(CRUISE) switch or
(Lane Keep Assist) switch is set to ON within approximately 7
seconds of the engine starting. It turns off when approximately 7 seconds have elapsed
since the engine started.
• When it is illuminated, none of the EyeSight functions can be used except for Conven-
tional Cruise Control.
Refer to page 90.
15
