D

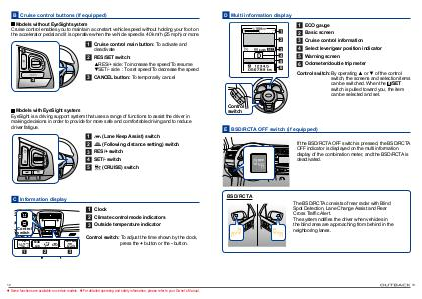

Multi information display
1 ECO gauge
km/h
km
1
2 Basic screen
2
3 Cruise control information
3
4 Select lever/gear position indicator
4
5
5 Warning screen
6
6 Odometer/double trip meter
Control switch: By operating ▲ or ▼ of the control
switch, the screens and selection items
can be switched. When the /SET
switch is pulled toward you, the item
can be selected and set.
Control
switch
E
BSD/RCTA OFF switch (if equipped)
If the BSD/RCTA OFF switch is pressed, the BSD/RCTA
OFF indicator is displayed on the multi information
display of the combination meter, and the BSD/RCTA is
deactivated.
BSD/RCTA
The BSD/RCTA consists of rear radar with Blind
Spot Detection, Lane Change Assist and Rear
Cross Traffic Alert.
The system notifies the driver when vehicles in
the blind area are approaching from behind in the
neighboring lanes.
13
