1-60
Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag)

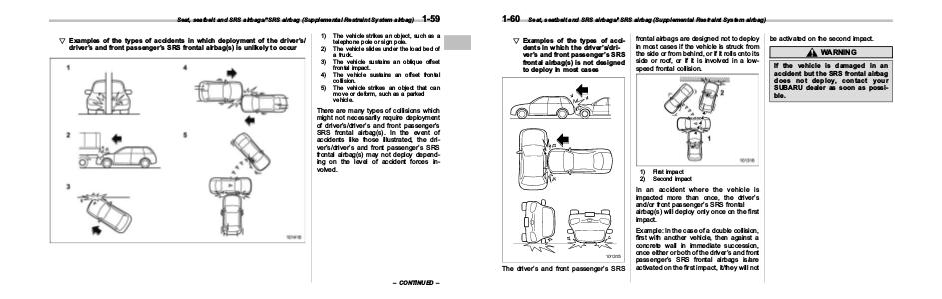

! Examples of the types of accidents in which the driver’s/driver’s and front passenger’s SRS
frontal airbag(s) is not designed
to deploy in most cases
frontal airbags are designed not to deploy
in most cases if the vehicle is struck from
the side or from behind, or if it rolls onto its
side or roof, or if it is involved in a lowspeed frontal collision.
1)
2)
First impact
Second impact
In an accident where the vehicle is
impacted more than once, the driver’s
and/or front passenger’s SRS frontal
airbag(s) will deploy only once on the first
impact.
The driver’s and front passenger’s SRS
Example: In the case of a double collision,
first with another vehicle, then against a
concrete wall in immediate succession,
once either or both of the driver’s and front
passenger’s SRS frontal airbags is/are
activated on the first impact, it/they will not
be activated on the second impact.
WARNING
If the vehicle is damaged in an
accident but the SRS frontal airbag
does not deploy, contact your
SUBARU dealer as soon as possible.
