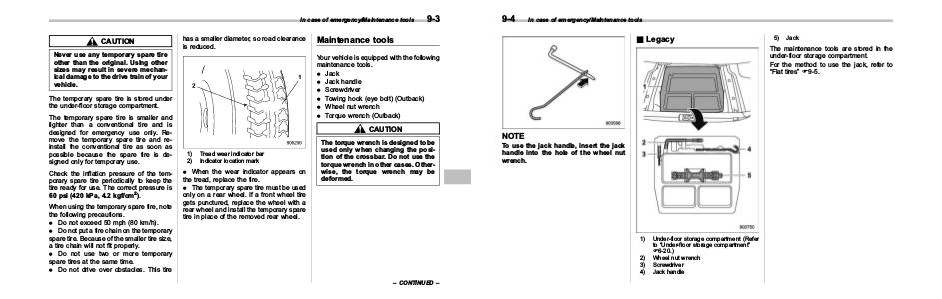

In case of emergency/Maintenance tools
CAUTION
has a smaller diameter, so road clearance
is reduced.
Never use any temporary spare tire
other than the original. Using other
sizes may result in severe mechanical damage to the drive train of your
vehicle.
Check the inflation pressure of the temporary spare tire periodically to keep the
tire ready for use. The correct pressure is
60 psi (420 kPa, 4.2 kgf/cm2).
When using the temporary spare tire, note
the following precautions.
. Do not exceed 50 mph (80 km/h).
. Do not put a tire chain on the temporary
spare tire. Because of the smaller tire size,
a tire chain will not fit properly.
. Do not use two or more temporary
spare tires at the same time.
. Do not drive over obstacles. This tire
Maintenance tools
Your vehicle is equipped with the following
maintenance tools.
. Jack
. Jack handle
. Screwdriver
. Towing hook (eye bolt) (Outback)
. Wheel nut wrench
. Torque wrench (Outback)
The temporary spare tire is stored under
the under-floor storage compartment.
The temporary spare tire is smaller and
lighter than a conventional tire and is
designed for emergency use only. Remove the temporary spare tire and reinstall the conventional tire as soon as
possible because the spare tire is designed only for temporary use.
9-3
CAUTION
1)
2)
Tread wear indicator bar
Indicator location mark
. When the wear indicator appe
