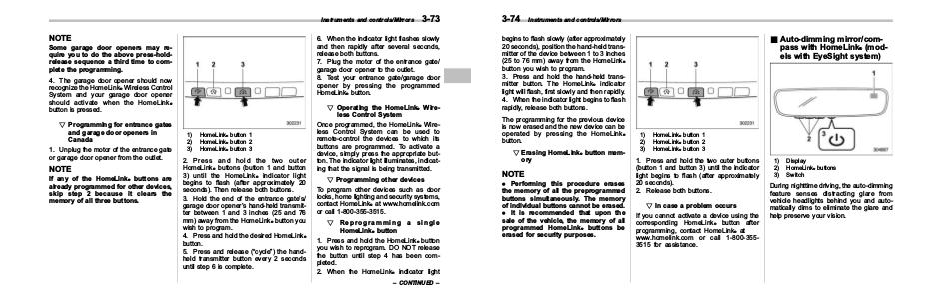

3-74 Instruments and controls/Mirrors & Auto-dimming mirror/compass with HomeLink® (models with EyeSight system) begins to flash slowly (after approximately 20 seconds), position the hand-held transmitter of the device between 1 to 3 inches (25 to 76 mm) away from the HomeLink® button you wish to program. 3. Press and hold the hand-held transmitter button. The HomeLink® indicator light will flash, first slowly and then rapidly. 4. When the indicator light begins to flash rapidly, release both buttons. The programming for the previous device is now erased and the new device can be operated by pressing the HomeLink ® button. ! Erasing HomeLink® button memory NOTE . Performing this procedure erases the memory of all the preprogrammed buttons simultaneously. The memory of individual buttons cannot be erased. . It is recommended that upon the sale of the vehicle, the memory of all programmed HomeLink® buttons be erased for security purposes. 1) 2) 3) HomeLink® button 1 HomeLink® button 2 HomeLink® button 3 1. Press and hold the two outer buttons (button 1 and button 3) until the indicator light begins to flash (after approximately 20 seconds). 2. Release both buttons. ! In case a problem occurs If you cannot activate a device using the corresponding HomeLink® button after programming, contact HomeLink® at www.homelink.com or call 1-800-3553515 for assistance. 1) 2) 3) Display HomeLink® buttons Switch During nighttime driving, the auto-dimming feature senses distracting glare from vehicle headlights behind you and automatically dims to eliminate the glare and help preserve your vision.
