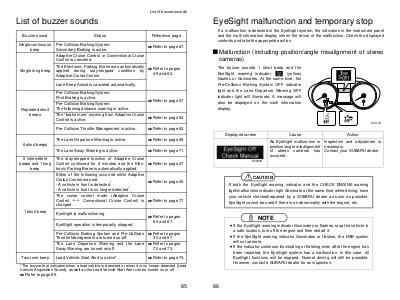

EyeSight malfunction and temporary stop
If a malfunction is detected in the EyeSight system, the indicators in the instrument panel
and the multi information display inform the driver of the malfunction. Check the displayed
contents and take the appropriate action.
■ Malfunction (including position/angle misalignment of stereo
cameras)
The buzzer sounds 1 short beep and the
EyeSight warning indicator
(yellow)
flashes or illuminates. At the same time, the
Pre-Collision Braking System OFF indicator
light and the Lane Departure Warning OFF
indicator light will illuminate. A message will
also be displayed on the multi information
display.
S01134
Displayed screen
Cause
Action
An EyeSight malfunction or Inspection and adjustment is
position/angle misalignment necessary.
of stereo cameras has Contact your SUBARU dealer.
occurred.
S00699
CAUTION
If both the EyeSight warning indicator and the CHECK ENGINE warning
light/malfunction indicator light illuminate at the same time while driving, have
your vehicle checked/repaired by a SUBARU dealer as soon as possible.
EyeSight cannot be used if there is an abnormality with the engine, etc.
NOTE
x If the EyeSight warning indicator illuminates or flashes, stop the vehicle in
a safe location, turn off the engine and then restart it.
x If the EyeSight warning indicator illuminates or flashes, the RAB system
will not operate.
x If the indicator continues illuminating or flashing even after the engine has
been restarted, the EyeSight system has a malfunction. In this case, all
EyeSight functions will be stopped. Normal driving will still be possible.
However, contact a SUBARU dealer for an inspection.
86
