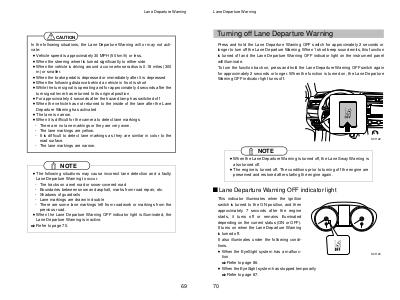

Lane Departure Warning
CAUTION
In the following situations, the Lane Departure Warning will or may not activate:
x Vehicle speed is approximately 30 MPH (50 km/h) or less.
x When the steering wheel is turned significantly to either side
x When the vehicle is driving around a curve whose radius is 0.18 miles (300
m) or smaller.
x When the brake pedal is depressed or immediately after it is depressed
x When the following distance behind a vehicle in front is short
x While the turn signal is operating and for approximately 4 seconds after the
turn signal lever has returned to its original position
x For approximately 4 seconds after the hazard lamp has switched off
x When the vehicle has not returned to the inside of the lane after the Lane
Departure Warning has activated
x The lane is narrow.
x When it is difficult for the camera to detect lane markings
- There are no lane markings or they are very worn.
- The lane markings are yellow.
- It is difficult to detect lane markings as they are similar in color to the
road surface.
- The lane markings are narrow.
NOTE
x The following situations may cause incorrect lane detection and a faulty
Lane Departure Warning to occur.
- Tire tracks on a wet road or snow-covered road
- Boundaries between snow and asphalt, marks from road repair, etc.
- Shadows of guardrails
- Lane markings are drawn in double
- There are some lane markings left from roadwork or markings from the
previous road.
x When the Lane Departure Warning OFF indicator light is illuminated, the
Lane Departure Warning is inactive.
Refer to page 70.
69
