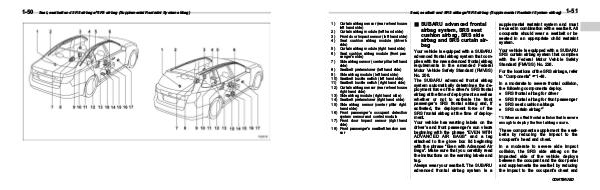

Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag)
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
Curtain airbag sensor (rear wheel house
left hand side)
Curtain airbag module (left hand side)
Front door impact sensor (left hand side)
Seat cushion airbag module (driver’s
side)
Curtain airbag module (right hand side)
Seat cushion airbag module (front pas
senger’s side)
Side airbag sensor (center pillar left hand
side)
Seatbelt pretensioner (left hand side)
Side airbag module (left hand side)
Seatbelt buckle switch (left hand side)
Seatbelt buckle switch (right hand side)
Curtain airbag sensor (rear wheel house
right hand side)
Side airbag module (right hand side)
Seatbelt pretensioner (right hand side)
Side airbag sensor (center pillar right
hand side)
Front passenger’s occupant detection
system sensor and control module
Front door impact sensor (right hand
side)
Front passenger’s seatbelt tension sen
sor
1-51
& SUBARU advanced frontal
airbag system, SRS seat
cushion airbag, SRS side
airbag and SRS curtain air-
bag supplemental restraint system and must
be used in combination with a seatbelt. All
occupants should wear a seatbelt or be
seated in an appropriate child restraint
system.
Your vehicle is equipped with a SUBARU
advanced frontal airbag system that com-
plies with the new advanced frontal airbag
requirements in the amended Federal
Motor Vehicle Safety Standard (FMVSS)
No. 208.
The SUBARU advanced frontal airbag
system automatically determines the de-
ployment force of the driver’s SRS frontal
airbag at the time of deployment as well as
whether or not to activate the front
passenger’s SRS frontal airbag and, if
activated, the deployment force of the
SRS frontal airbag at the time of deploy-
ment.
Your vehicle has warning labels on the
driver’s and front passenger’s sun visors
beginning with the phrase “EVEN WITH
ADVANCED AIR BAGS” and a tag
attached to the glove box lid beginning
with the phrase “Even with Advanced Air
Bags”. Make sure that you carefully read
the instructions on the warning labels and
tag.
Always wear your seatbelt. The SUBARU
advanced frontal airbag system is a Your vehicle is equipped with a SUBARU
SRS curtain airbag system that complies
with the Federal Motor Vehicle Safety
Standard (FMVSS) No. 226.
For the locations of the SRS airbags, refer
to “Components” F1-48.
In a moderate to severe frontal collision,
the following components deploy.
. SRS frontal airbag for driver
. SRS frontal airbag for front passenger
. SRS seat cushion airbags
. SRS curtain airbag* 1
*1: When an offset frontal collision that is severe
enough to deploy the front airbag occurs.
These components supplement the seat-
belts by reducing the impact to the
occupant’s head and chest.
In a moderate to severe side impact
collision, the SRS side airbag on the
impacted side of the vehicle deploys
between the occupant and the door panel
and supplements the seatbelt by reducing
the impact to the occupant’s chest and
CONTINUED
