4-4

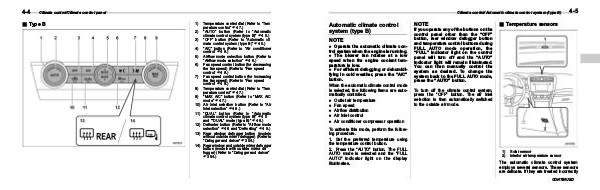

Climate control/Climate control panel
& Type B
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
Temperature control dial (Refer to “Tem
perature control” F4 7.)
“AUTO” button (Refer to “Automatic
climate control system (type B)” F4 5.)
“OFF” button (Refer to “Automatic cli
mate control system (type B)” F4 5.)
“A/C” button (Refer to “Air conditioner
control” F4 8.)
Airflow mode selection button (Refer to
“Airflow mode selection” F4 6.)
Fan speed control button (for decreasing
the fan speed) (Refer to “Fan speed
control” F4 8.)
Fan speed control button (for increasing
the fan speed) (Refer to “Fan speed
control” F4 8.)
Temperature control dial (Refer to “Tem
perature control” F4 7.)
“MAX A/C” button (Refer to “MAX A/C
mode” F4 7.)
Air inlet selection button (Refer to “Air
inlet selection” F4 8.)
“DUAL” button (Refer to “Automatic
climate control system (type B)” F4 5
and ““DUAL” mode (type B)” F4 8.)
Defroster button (Refer to “Airflow mode
selection” F4 6 and “Defrosting” F4 9.)
Rear window defogger button (models
without outside mirror defogger) (Refer to
“Defogger and deicer” F3 54.)
Rear window and outside mirror defogger
button (models with outside mirror de
fogger) (Refer to “Defogger and deicer”
F3 54.)
