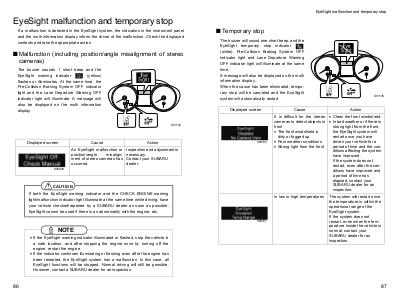

EyeSight malfunction and temporary stop
EyeSight malfunction and temporary stop
If a malfunction is detected in the EyeSight system, the indicators in the instrument panel and the multi information display inform the driver of the malfunction. Check the displayed contents and take the appropriate action.
■ Malfunction( including position / angle misalignment of stereo cameras)
The buzzer sounds 1 short beep and the EyeSight warning indicator( yellow) flashes or illuminates. At the same time, the Pre-Collision Braking System OFF indicator light and the Lane Departure Warning OFF indicator light will illuminate. A message will also be displayed on the multi information display.
S01134
Displayed screen |
Cause |
Action |
|
An EyeSight malfunction or |
Inspection and adjustment is |
position / angle |
misalignment |
necessary. |
of stereo cameras has occurred. |
Contact your SUBARU dealer. |
S00699
CAUTION If both the EyeSight warning indicator and the CHECK ENGINE warning light / malfunction indicator light illuminate at the same time while driving, have your vehicle checked / repaired by a SUBARU dealer as soon as possible. EyeSight cannot be used if there is an abnormality with the engine, etc.
NOTE
� If the EyeSight warning indicator illuminated or flashed, stop the vehicle in a safe location, and after stopping the engine once by turning off the engine, restart the engine.
� If the indicator continues illuminating or flashing even after the engine has been restarted, the EyeSight system has a malfunction. In this case, all EyeSight functions will be stopped. Normal driving will still be possible. However, contact a SUBARU dealer for an inspection.
86
