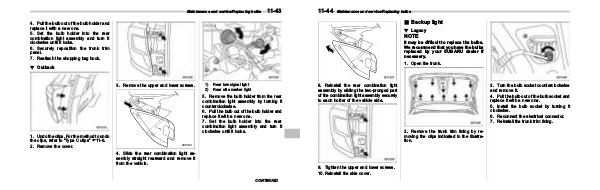

Maintenance and service/Replacing bulbs
11-43
4. Pull the bulb out of the bulb holder and
replace it with a new one.
5. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
6. Securely reposition the trunk trim
panel.
7. Reattach the shopping bag hook.
! Outback
3. Remove the upper and lower screws.
1)
2)
Rear turn signal light
Rear side marker light
5. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
6. Pull the bulb out of the bulb holder and
replace it with a new one.
7. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
1. Undo the clips. For the method to undo
the clips, refer to “Type C clips” F11-6.
2. Remove the cover.
4. Slide the rear combination light as-
sembly straight rearward and remove it
from the vehicle.
CONTINUED
