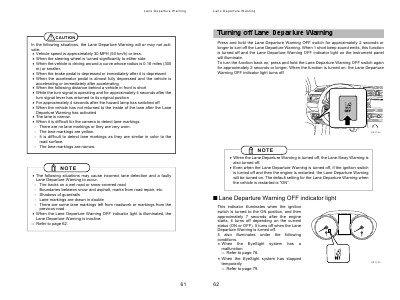

Lane Departure Warning
CAUTION
In the following situations, the Lane Departure Warning will or may not activate:
Vehicle speed is approximately 30 MPH (50 km/h) or less.
When the steering wheel is turned significantly to either side
When the vehicle is driving around a curve whose radius is 0.18 miles (300
m) or smaller.
When the brake pedal is depressed or immediately after it is depressed
When the accelerator pedal is almost fully depressed and the vehicle is
accelerating or immediately after accelerating
When the following distance behind a vehicle in front is short
While the turn signal is operating and for approximately 4 seconds after the
turn signal lever has returned to its original position
For approximately 4 seconds after the hazard lamp has switched off
When the vehicle has not returned to the inside of the lane after the Lane
Departure Warning has activated
The lane is narrow.
When it is difficult for the camera to detect lane markings
- There are no lane markings or they are very worn.
- The lane markings are yellow.
- It is difficult to detect lane markings as they are similar in color to the
road surface.
- The lane markings are narrow.
NOTE
The following situations may cause incorrect lane detection and a faulty
Lane Departure Warning to occur.
- Tire tracks on a wet road or snow-covered road
- Boundaries between snow and asphalt, marks from road repair, etc.
- Shadows of guardrails
- Lane markings are drawn in double
- There are some lane markings left from roadwork or markings from the
previous road.
When the Lane Departure Warning OFF indicator light is illuminated, the
Lane Departure Warning is inactive.
Refer to page 62.
61
