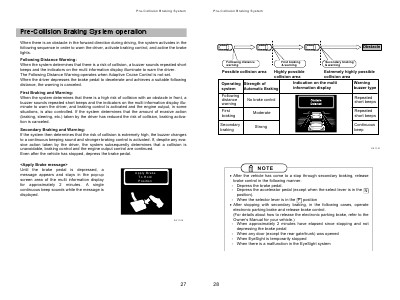

Pre-Collision Braking System
Obstacle
Following distance
warning
First braking
& warning
Possible collision area
Highly possible
collision area
Operating Strength of
Automatic Braking
system
Following
distance
warning
First
braking
Secondary
braking
Secondary braking
& warning
Extremely highly possible
collision area
Indication on the multi
information display
Warning
buzzer type
No brake control
Repeated
short beeps
Moderate
Repeated
short beeps
Strong
Continuous
beep
S01141
NOTE
After the vehicle has come to a stop through secondary braking, release
brake control in the following manner.
- Depress the brake pedal.
- Depress the accelerator pedal (except when the select lever is in the N
position).
- When the selector lever is in the P position
After stopping with secondary braking, in the following cases, operate
electronic parking brake and release brake control.
(For details about how to release the electronic parking brake, refer to the
Owner’s Manual for your vehicle.)
- When approximately 2 minutes have elapsed since stopping and not
depressing the brake pedal
- When any door (except the rear gate/trunk) was opened
- When EyeSight is temporarily stopped
- When there is a malfunction in the EyeSight system
28
