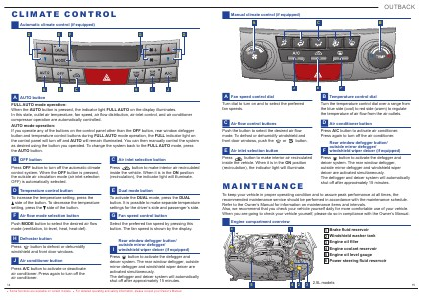

C L I M AT E C O N T RO L
Automatic climate control (if equipped)
D
E
A
A
F
B
G
C
H
D
I
J
AUTO button
FULL AUTO mode operation:
When the AUTO button is pressed, the indicator light FULL AUTO on the display illuminates.
In this state, outlet air temperature, fan speed, air flow distribution, air-inlet control, and air conditioner
compressor operation are automatically controlled.
AUTO mode operation:
If you operate any of the buttons on the control panel other than the OFF button, rear window defogger
button and temperature control buttons during FULL AUTO mode operation, the FULL indicator light on
the control panel will turn off and AUTO will remain illuminated. You can then manually control the system
as desired using the button you operated. To change the system back to the FULL AUTO mode, press
the AUTO button.
B
OFF button
Press OFF button to turn off the automatic climate
control system. When the OFF button is pressed,
the outside air circulation mode (air inlet selection
OFF) is automatically selected.
D
Temperature control button
To increase the temperature setting, press the
side of the button. To decrease the temperature
setting, press the side of the button.
F
Air flow mode selection button
Push MODE button to select the desired air flow
mode (ventilation, bi-level, heat, heat-def).
H
Air conditioner button
Press A/C button to activate or deactivate
air conditioner. Press again to turn off the
air conditioner.
14
Air inlet selection button
Press
button to make interior air recirculated
inside the vehicle. When it is in the ON position
(recirculation), the indicator light will illuminate.
E
Dual mode button
To activate the DUAL mode, press the DUAL
button. It is possible to make separate temperature
settings for the driver’s side and passenger’s side.
G
Fan speed control button
Select the preferred fan speed by pressing this
button. The fan speed is shown by the display.
Defroster button
Press
button to defrost or dehumidify
windshield and front door windows.
J
C
I
Rear window defogger button/
outside mirror defogger/
windshield wiper deicer (if equipped)
Press
button to activate the defogger and
deicer system. The rear window defogger, outside
mirror defogger and windshield wiper deicer are
activated simultaneously.
The defogger and deicer system will automatically
shut off after approximately 15 minutes.
Some functions are available on certain models. For detailed operating and safety information, please consult your Owner’s Manual.
