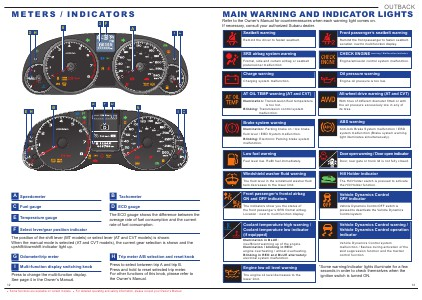

M E T E R S / I N D I C ATO R S
D H
E H
G F
B
B
G
F
A
D
I C
A
A
Speedometer
B
Tachometer
C
Fuel gauge
D
ECO gauge
E
Temperature gauge
F
Select lever/gear position indicator
I C
The ECO gauge shows the difference between the
average rate of fuel consumption and the current
rate of fuel consumption.
The position of the shift lever (MT models) or select lever (AT and CVT models) is shown.
When the manual mode is selected (AT and CVT models), the current gear selection is shown and the
upshift/downshift indicator light up.
G
I
Odometer/trip meter
Multi-function display switching knob
Press to change the multi-function display.
See page 4 in the Owner’s Manual.
H
Trip meter A/B selection and reset knob
Press to select between trip A and trip B.
Press and hold to reset selected trip meter.
For other functions of this knob, please refer to
the Owner’s Manual.
12
Some functions are available on certain models. For detailed operating and safety information, please consult your Owner’s Manual.
